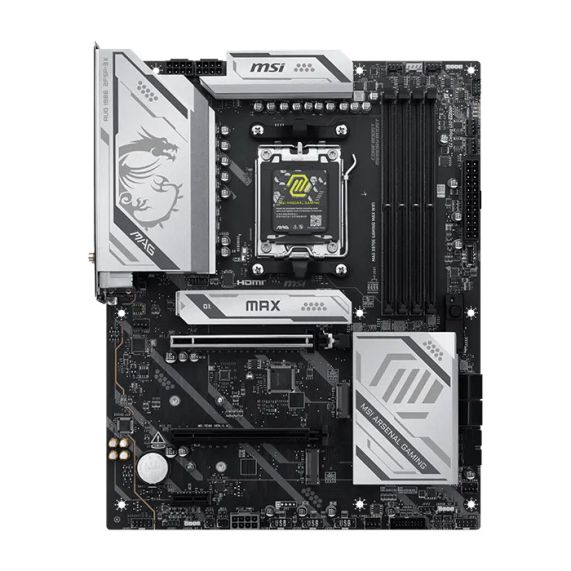

MSI MAG X870E Gaming MAX WIFI AM5 DDR5 Motherboard ATX

The MSI MAG X870E Gaming MAX WIFI AM5 DDR5 Motherboard ATX is engineered to be the rock-solid heart of your next high-performance gaming or creative rig. Built from MSI’s mainstream MAG lineage, this board emphasizes stability, durability and thermally optimized design to withstand marathon sessions and heavy workloads. With full AM5 support for AMD Ryzen™ 9000/8000/7000 series processors, next-generation memory and connectivity, and a host of builder-friendly features, the MAG X870E GAMING MAX WIFI delivers the balanced foundation every enthusiast needs for uncompromised performance and effortless system customization.

Benefits

• Sustained, reliable performance: A robust VRM design and high-quality materials keep CPU power delivery stable under heavy loads, ensuring consistent frame rates and computation during long gaming sessions or demanding creative tasks.
• Future-ready connectivity: From Wi‑Fi 7 and 5G LAN to ultra-fast USB solutions and PCIe 5.0, this board supports modern peripherals and high-bandwidth devices so you can build a system that’s ready for tomorrow’s standards.
• Massive memory and upgrade headroom: Support for DDR5 across four DIMM slots—up to 8200+ MT/s (OC) and a total of 256GB—gives you the memory bandwidth and capacity needed for gaming, streaming, and professional workflows.
• Flexible storage and expansion: Multiple M.2 slots, SATA ports and RAID options let you configure blistering NVMe arrays, large capacity drives, and expansion cards to match your needs.
• Builder-friendly cooling and DIY tools: Extensive heatsinks, high-performance thermal pads, dedicated M.2 shielding and MSI’s EZ DIY features simplify installation and keep temperatures in check for sustained high performance.

Key features

• Feature — Power delivery and performance tuning

The MAG X870E Gaming MAX WIFI implements a 12+2+1 Duet Rail Power System with 60A Smart Power Stages and dual 8-pin CPU power connectors to provide clean, consistent power to high-core-count Ryzen CPUs. Core Boost and Memory Boost technologies, combined with a 6-layer PCB using 2oz thickened copper, deliver the electrical stability and signal integrity required for aggressive overclocking and dependable daily performance.

• Feature — Next-generation memory support

Four DDR5 memory slots support dual-channel DDR5 up to 8200+ MT/s (OC) and JEDEC-compliant speeds down to 4800 MT/s, enabling up to 256GB of system memory. This broad memory support gives gamers, streamers and content creators the headroom for smoother multitasking, faster asset loading and better responsiveness in memory-intensive applications.

• Feature — Advanced connectivity and networking

Built-in Wi‑Fi 7 capability and a Realtek® 8126 5G LAN port provide multiple high-speed networking options for low-latency online play and fast transfers. Generous USB connectivity—including modern Type‑C and Type‑A ports—keeps you connected to high-speed peripherals, external storage and workflow devices. The board’s overall I/O complements today’s fastest devices and supports future expansions.

• Feature — Storage capacity and expansion

Robust storage options include three M.2 slots and four SATA 6Gb/s ports, with RAID support for SATA (RAID 0/1/5/10) and M.2 (RAID 0/1/5), enabling flexible storage configurations from single NVMe boot drives to high-performance RAID arrays. Expansion capacity is equally strong with two PCIe x16 slots (PCIe 5.0-ready) and an additional PCIe x1 slot, allowing multi-GPU, high-bandwidth accelerators or additional I/O cards.

• Feature — Cooling, durability and DIY friendliness

Thermal management is a focus: extended heatsinks, MOSFET thermal pads rated at 7 W/mK, additional choke thermal pads and the EZ M.2 Shield Frozr II help dissipate heat from critical components. MSI’s EZ DIY features, supplemental PCIe power and an AI-enhanced MSI Center and BIOS make setup, tuning and system maintenance more approachable—so builders of all skill levels can assemble, optimize and maintain a high-performance PC with confidence.

Summary

The MSI MAG X870E Gaming MAX WIFI AM5 DDR5 Motherboard ATX is a balanced, feature-rich platform for gamers, creators and enthusiasts who demand durability, flexibility and modern connectivity. From its heavy-duty power delivery and DDR5 headroom to its next-gen networking, extensive storage options and thoughtful cooling solutions, this board provides the foundation for a high-performance AM5 system that’s easy to build and tuned for long-term reliability. Whether you’re crafting a competitive gaming rig, a streaming workstation or a content creation powerhouse, the MAG X870E GAMING MAX WIFI equips you with the tools and technologies to push your system further.
