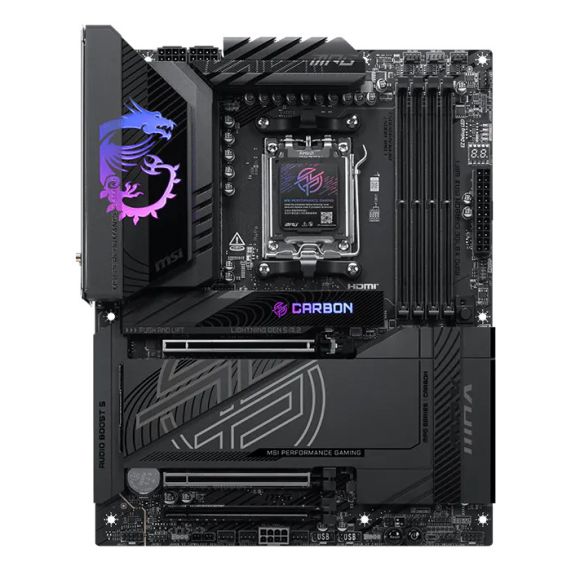

MSI MPG X870E Carbon MAX WIFI AM5 DDR5 Motherboard ATX

MSI MPG X870E Carbon MAX WIFI AM5 DDR5 Motherboard ATX arrives as a bold blend of performance, style, and modern connectivity. Dressed in a carbon black color scheme with reflective accents and Mysticlight RGB, this ATX platform is built to showcase a high-performance AMD Ryzen 9000-series system while delivering the thermal headroom, power delivery and expandability enthusiasts demand. From extreme overclocking features to next-generation storage and networking, the MPG X870E Carbon MAX WIFI is designed to be the backbone of a flagship gaming or content-creation rig.

Benefits

• Uncompromised performance: The robust 18+2+1 Duet Rail Power System, OC Engine and dual 8‑pin CPU power connectors enable sustained delivery to high-end AMD Ryzen processors for higher clocks and stable heavy-load operation.
• Future-ready platform: AM5 socket compatibility with DDR5 memory and PCIe 5.0 support ensures long-term upgradeability and performance scaling for next-generation GPUs, NVMe drives and CPUs.
• Superior cooling and stability: Enlarged heatsinks, heat-pipe design, high thermal‑conductivity MOSFET pads and M.2 Shield Frozr II keep temperatures under control during demanding sessions, preserving performance and component longevity.
• Versatile storage and RAID options: Four M.2 slots plus four SATA 6G ports, combined with extensive RAID support, provide the capacity and flexibility for fast NVMe arrays, massive media libraries or multi-drive redundancy setups.
• Advanced connectivity for gaming and streaming: Built‑in WiFi 7, dual high-speed LAN (5G + 2.5G), premium onboard audio and multiple Gen 2 USB options mean faster, cleaner connections for online play, content creation and peripherals.

Key features

• Power & Overclocking Excellence

- 18+2+1 Duet Rail Power System with 110A Smart Power Stages, dual 8‑pin CPU power connectors and OC Engine support deliver the headroom and precision required for extreme overclocking and smooth multi-core performance under load.

• Memory & Performance

- Four DDR5 DIMM slots supporting up to 256GB and speeds from JEDEC standards up to DDR5 9000+ MT/s (OC). Core Boost and Memory Boost technologies, together with an 8‑layer PCB using 2oz thickened copper and server‑grade materials, ensure signal integrity and stable high-frequency operation.

• Storage & Expansion

- Four M.2 slots with the latest PCIe 5.0 support, protected by EZ M.2 Shield Frozr II, plus four SATA 6G ports for legacy drives. Flexible RAID options include RAID 0/1/10 for SATA and RAID 0/1/5/10 for M.2, offering both performance and redundancy choices.

• Connectivity & Networking

- Integrated WiFi 7 and dual wired LAN (Realtek® 8126 5G and Realtek® 8125 2.5G) provide ultra‑fast, low-latency networking for competitive gaming and high-bandwidth streaming. Front-panel and rear USB 3.2 Gen 2 Type-C and Type-A ports deliver fast peripheral and external storage connectivity.

• Cooling, Audio & Aesthetics

- Enlarged Frozr Guard heatsink with heat-pipe, MOSFET thermal pads rated for high conductivity and additional choke thermal pads keep critical components cool. Mysticlight RGB and carbon-style reflective decorations create a refined, customizable visual identity. Onboard Realtek® ALC4080 audio delivers immersive sound for gaming and media.

Summary

The MSI MPG X870E Carbon MAX WIFI AM5 DDR5 Motherboard ATX is engineered to be the centerpiece of a high-end AMD Ryzen system—combining elite power delivery, cutting-edge connectivity, and advanced cooling in a stylish carbon-themed package. Whether you’re pushing the limits with aggressive CPU and memory overclocks, building a fast, multi-drive storage array, or seeking uncompromised network and audio performance for streaming and competitive play, this motherboard provides the components and features to build a flagship PC. With extensive expandability, premium engineering, and modern aesthetics, the MPG X870E Carbon MAX WIFI transforms ambitious builds into showpieces of speed and reliability.
