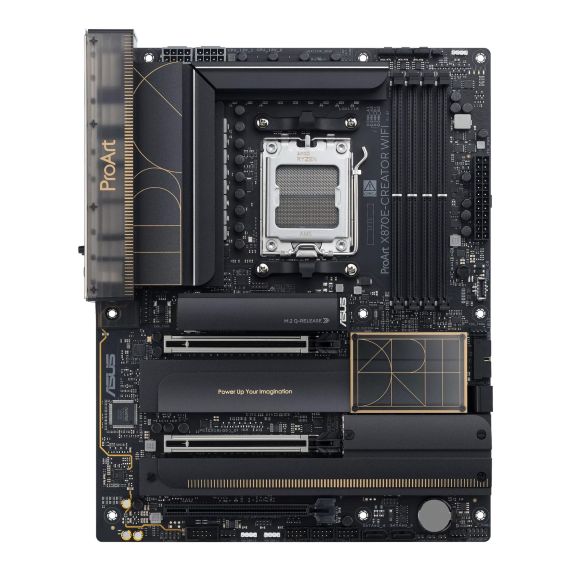

Asus PROART X870E-CREATOR WIFI AM5 DDR5 Motherboard ATX

The Asus PROART X870E-CREATOR WIFI AM5 DDR5 Motherboard ATX is engineered for creators, professionals and power users who demand uncompromising performance, ultra-fast connectivity and a refined aesthetic that reflects the seriousness of their craft. Built around the AMD X870 chipset and the AM5 socket, this board unlocks the full potential of Ryzen™ 9000, 8000 and 7000 Series processors with a high-efficiency 16+2+2 power delivery design, advanced cooling, and a suite of I/O options that streamline complex workflows. From multi-stream video editing and 3D rendering to large-scale content libraries and NAS-driven collaboration, the ProArt X870E-Creator WiFi is designed to be the backbone of a professional creative workstation.

Benefits

• Maximum creative throughput: Support for the latest Ryzen processors and DDR5 memory up to 256GB lets you tackle rendering, compositing and heavy multitasking without bottlenecks.
• Future-ready expansion: PCIe® 5.0 support, multiple M.2 slots and robust I/O ensure your system can evolve with next-generation GPUs, NVMe storage and peripherals.
• Ultra-fast, flexible connectivity: Dual USB4 ports, dual high-speed Ethernet (10Gb + 2.5Gb) and WiFi 7 deliver the bandwidth and low-latency links needed for 4K/8K content transfers, collaborative work and streaming.
• Creator-centric workflow features: DisplayPort In for advanced monitor routing, rich onboard audio and extensive storage options let you build a workstation that matches the demands of professional pipelines.
• Professional reliability and tuning: Thoughtful thermal solutions, precise voltage regulation and BIOS-level tuning tools provide stable performance during sustained, heavy workloads.

Key features

• Feature: High-performance power and memory platform

The 16+2+2 team power stages deliver clean, consistent power to modern Ryzen processors, enabling sustained boost clocks under load. Four DDR5 slots support up to 256GB of memory and over 8000 MT/s (OC) with compatible Ryzen™ 9000 / 8000 Series CPUs, giving content creators the headroom needed for memory-intensive tasks like video timelines, texture pools and large datasets.

• Feature: Next-generation PCIe and storage flexibility

Dual PCIe 5.0 x16 slots with Q-Release Slim enable cutting-edge GPU configurations and fast device swaps, while an additional PCIe 4.0 x16 slot (operating in x4 mode) broadens expansion options. Storage is comprehensive: four M.2 slots plus four SATA 6Gb/s ports accommodate multiple NVMe drives and high-capacity HDDs. Hardware RAID support (PCIe RAID 0/1/5/10 with Ryzen™ 9000 series; PCIe RAID 0/1 with Ryzen™ 8000 series) further supports speedy, redundant storage arrays.

• Feature: Unrivaled connectivity for creators

Dual USB4 ports provide up to 40 Gbps bi-directional throughput for docks, external GPUs and high-speed storage, and can carry display output for high-resolution workflows. Rear I/O includes USB 3.2 Gen 2 Type-C and Type-A ports for legacy and modern devices. Network performance is exceptional with a Marvell® AQtion 10Gb Ethernet port for fast local transfers, an Intel® 2.5Gb Ethernet port for low-latency internet streams and WiFi 7 for ultra-fast wireless links and improved stability via Multi-Link Operation (MLO).

• Feature: Creator-focused display and audio features

The board supports advanced display routing—connect a discrete GPU to the onboard DisplayPort™ In and route output through USB4 to drive one 8K or two 4K color-accurate displays, simplifying multi-monitor studio setups. Onboard Realtek ALC1220P 7.1 Surround Sound delivers high-fidelity audio for editing and content review, while premium onboard components and circuitry preserve signal integrity for pro-grade peripherals.

• Feature: Elegant, professional design and practical chassis integration

The ProArt X870E-Creator WiFi combines a tone-on-tone black palette with metallic gold accents and a translucent I/O cover that showcases premium connectors, delivering a refined visual identity for studio builds. The ATX form factor (30.5 cm x 24.4 cm) and thoughtful layout—including Q-Release Slim slots and abundant cooling headers—make it straightforward to build and maintain a clean, thermally efficient workstation. PC Builder Rated for performance and compatibility, this board is ready for serious system integrators and hobbyists alike.

Summary

The Asus PROART X870E-CREATOR WIFI AM5 DDR5 Motherboard ATX is a purpose-built platform for creators who need pro-level performance, expansive connectivity and future-proof expandability. Whether you’re assembling a high-throughput editing rig, a rendering farm node or a versatile production workstation, this board provides the power delivery, memory bandwidth, storage versatility and networking muscle to keep projects flowing. With a refined aesthetic and creator-centric features like USB4 display routing and WiFi 7, the ProArt X870E-Creator WiFi pairs substance with style—designed to accelerate workflows and help you realize your most ambitious work.
